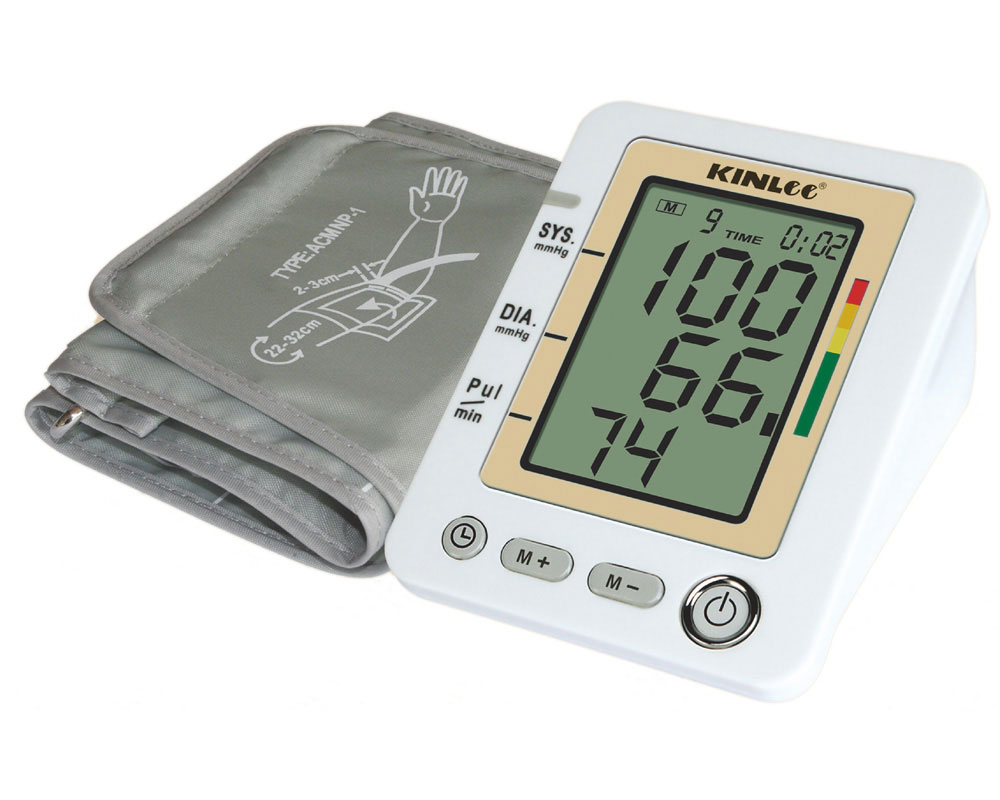

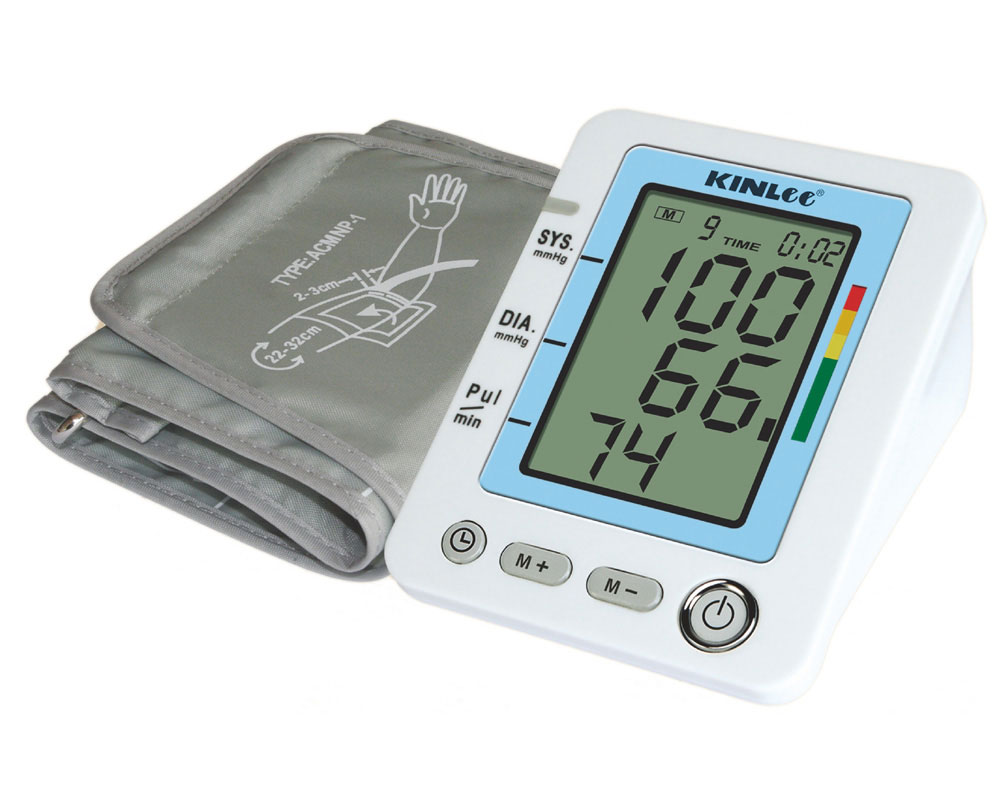

Product Name：Electronic blood pressure monitor
Product model：AP8010
Specification： ①.weight：Approximate 500g. (Include four AA battery and wristlet)
②.Dimension（Host）：138mm×108mm×82mm
③.Power Source：AC100-240V 50/60Hz 0.5A)
Batteries: DC6V (4 x AA LR6)
Product Main Structural Composition：
Consists of host, cuff and power supply.
Intended purpose：
Electronic Blood Pressure Monitor is intended to measure adult’s systolic and diastolic blood pressure, pulse on upper arm. It is mainly applied to household(adult).
Product technical parameters：
|
Name |
Electronic Blood Pressure Monitor |
|
Model |
AP8010 |
|
Display |
LCD |
|
Measuring method |
Oscillometric method |
|
Operating conditions |
Ambient temperature: 10℃～40℃ |
|
Relative humidity (RH): 15%-85% |
|
|
Batteries: DC6V (4 x AA LR6) |
|
|
Atmospheric pressure: 700 hPa-1060 hPa |
|
|
Transport condition and storage |
Ambient temperature: -20℃～50℃ |
|
Relative humidity (RH): 15%-90% |
|
|
Atmospheric pressure: 500 hPa-1060 hPa |
|
|
Measurement range |
Pressure: 0-295mmHg（0-39.2kPa） Pulse Rate:40-199/minute SYS:56-259mmHg(7.4-34.4kPa) DIA:26-199mmHg(3.5-26.4kPa) |
|
Accuracy |
Pressure: ±3mmHg（0.4kPa） Pulse Rate: ±5% |
|
Auto-inflation by electro-pneumatic pump |
|
|
Deflation system |
relief valve |
|
Celerity exhaust |
electro-relief valve |
|
Analysis accuracy |
1 mmHg/0.1 kPa |
|
External Dimension |
138mm×108mm×82mm（L× W × H） |
|
Weight |
Approximate 500g. (Include four AA battery and wristlet) |
|
Auto Power-off |
|
|
Memory function |
90 groups measurements result storage and recall |
|
Date time display |
Time/Day/Month/Year |
|
power interface |
external diameter: 5.5mm，internal diameter: 2.0mm |
|
Work mode |
Continuous operation |
|
Power Source |
Adapter ：LXCP12-006100AEH (optional) INPUT ：AC100-240V 50/60Hz 0.5A) |
|
Measurement perimeter of the upper arm |
About 22cm~32cm |
|
The time required for the product to rise from the minimum storage temperature between two uses to the temperature ready for use (20℃); |
30 minutes |
|
The time required for the product to drop from the maximum storage temperature between two uses to the temperature (20℃) when it is ready for use; |
30 minutes |
